Gàu Van Veen lấy mẫu bùn trầm tích tầng sâu, 2500m2 Model: 12.410 Hãng sản xuất: KC Denmark – Đan Mạch

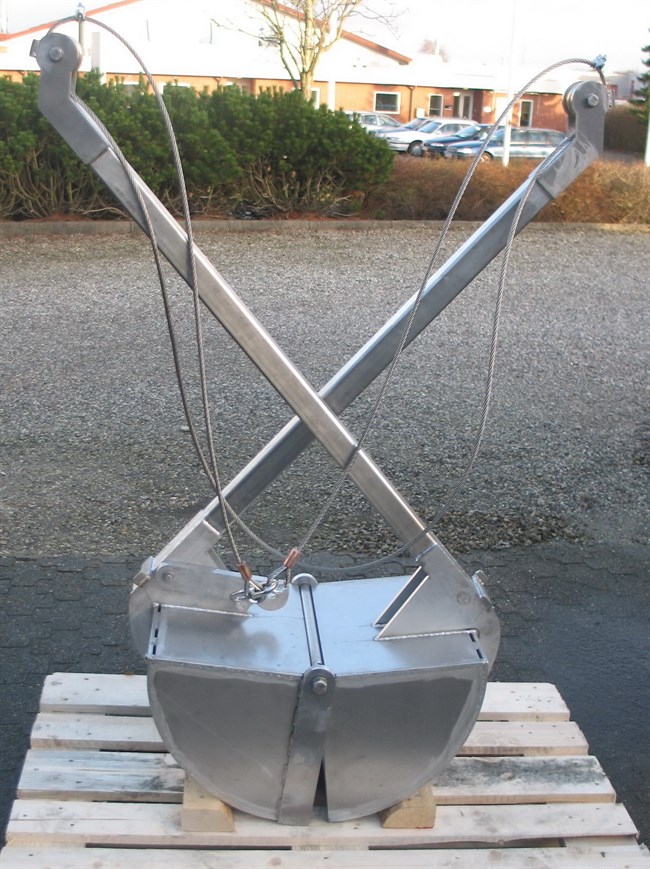

Gàu Van Veen lấy mẫu bùn trầm tích tầng sâu, 2500m²

Model: 12.410

Hãng sản xuất: KC Denmark – Đan Mạch

Xuất xứ: Đan Mạch



Tham khảo tại: http://www.kc-denmark.dk/products/sediment-samplers/van-veen-grab/van-veen-grab-1000-cm%C2%B2.aspx

1.      Tính năng kỹ thuật:

Application:

-          Sampler for collecting bottom sediments for biological, hydrological and environmental studies.  12.110 with 4 lids (250 cm²). 4 x 1 kg lead weights.12.110 with 4 lids (250 cm²).  12.110 with 4 lids (250 cm²)12.110 with 4 lids (250 cm²)   General:

-          The Van Veen grab is based on the Van Veen design. The Van Veen grab is made of AISI 316 stainless steel and the surface is electro polished. The grab itself is manufactured from 3 mm plate (250 cm²), 4 mm for 1000 cm² and 8 mm for a 2000 or 2500 cm².Sizes:

-          There are 4 sizes of Van Veen:

-          12.110 - 250 cm², (0,025 m²) - 3,14 liters.

-          12.210 - 1000 cm², (0,1 m²) - 15 liters.

-          12.310 - 2000 cm², (0,2 m²) - 50 liters.

-          12.410 - 2500 cm², (0,25 m²) - 82 liters.

Lids:

-          The small models are delivered with 4 lids the 12.310 model Van Veen grab 2000cm² has 2 lids available. By opening the lid(s) it is possible to take out one or more undisturbed sample to have a look at the stratification of the sediment without releasing the whole sample. See A/B on schematic:By request KC-Denmark also manufacture the 12.210 and 12.400  model matching Norwegian ISO standard (lids with stainless steel mesh and rubber mats to reduce the shock wave)  12.110 with 4 lids (250 cm²)12.110 with 4 lids (250 cm²)  12.110 with 4 lids (250 cm²)12.110 with 4 lids (250 cm²)

Size of lids:

-          12.110: 60 x 70 mm each

-          Other types of bottom samplers are made on request - please contact us for further information.Sieves:KC-Denmark manufacture two standard area sieves with various mash size, see below links for more information.

2.      Thông số kỹ thuật:

Ordering No.	12.410
Sample area	2500 cm²
Sample volume	82 litres
Materials	AISI 316 stainless steel. The grab = 8 mm The arms are manufactured from square tube, 60 x 60 x 4 mm with 12 mm reinforcements
Lead weights	4 x 12,5 kg, optinal
Recommended wire	6 - 8 mm
Dimensions	Open: L x W x H: 238 x 54 x 60 cm Closed: L x W x H: 90 x 54 x 145 cm
Lids	4 lids, All lids have the stainless steel mesh and the rubber flaps
Net weight	125 kg
Pallet for shipping	L x W x H: 120 x 80 x 176 cm

3.      Cung cấp bao gồm:

-          Thiết bị lấy mẫu trầm tích kiểu VanVeen 2500cm², code: 12.410

-          Tài liệu hướng dẫn sử dụng
